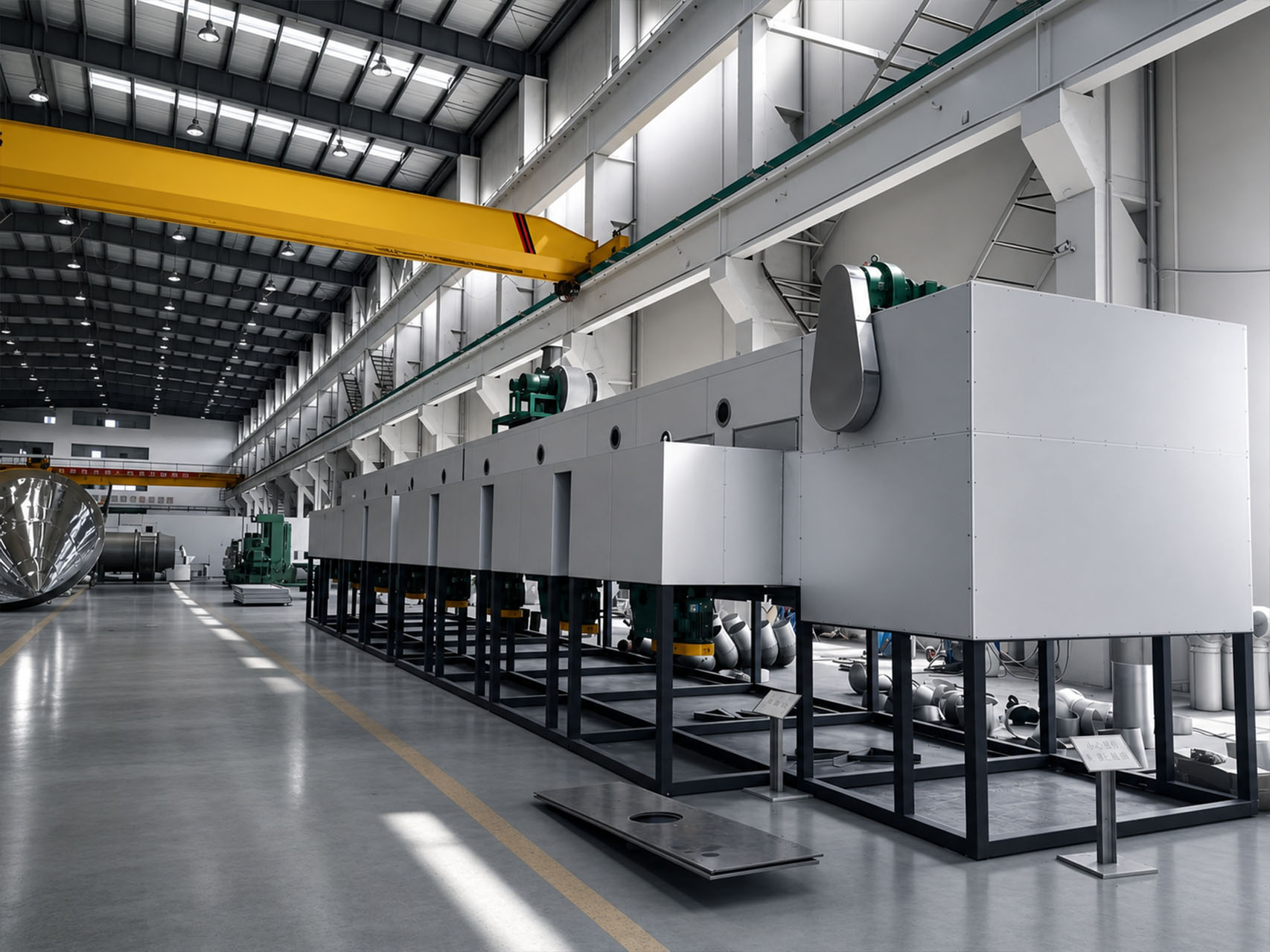

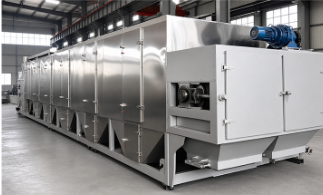

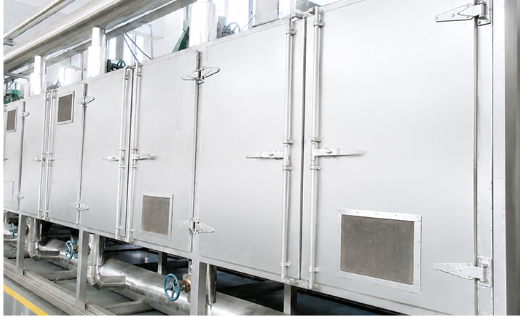

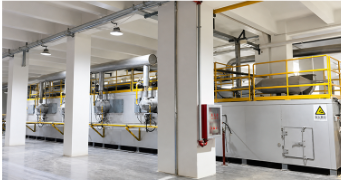

Multi-layer belt drier

Product Introduction:

Working Principle Multi-layer belt drier is a continuous drying equipment for batch production, which is used for drying flaky, strip and granular materials with good air permeability, especially suitable for dehydrated vegetables, catalysts, Chinese herbal pieces and other materials with high water content, but the material temperature is not allowed to be high; This series of dryers has the advantages of fast drying speed, high evaporation intensity and good product quality. Paste materials su

Return to List Contact us

Hotline：

15861136007

Product Details

Principle of operation

Multi-layer belt drier is a continuous drying equipment for batch production, which is used for drying flaky, strip and granular materials with good air permeability, especially for dehydrated vegetables, catalysts, Chinese herbal pieces and other materials with high water content, but the material temperature is not allowed to be high. This series of dryers has the advantages of fast drying speed, high evaporation intensity and good product quality. Paste materials such as dehydrated filter cakes can only be dried after granulation or strip making.

Performance characteristics

Multi-layer belt drier is suitable for mass production of difficult-to-dry materials with low drying rate, with compact equipment structure, small floor space, simple operation, convenient maintenance and stable operation. It can be designed into different forms of hot air circulation drying according to the drying characteristics of materials. It is an extension and improvement of hot air circulation oven and is widely used in metallurgical additives, chemical industry, food, packaging and other fields. With the technical progress of enterprises and the improvement of technical content of products, multi-storey belt drier has the ability to meet the needs of mass production, diversification, centralized control and continuous production. It has the advantages of high efficiency, energy saving and easy management.

Applied range

Dehydrated vegetables, melon seeds, dates, peanuts, pellet feed, monosodium glutamate, coconut milk, synthetic rubber, polypropylene fiber, medicines, medicinal materials, small wooden products, plastic products, aging and curing of electronic devices, etc. Filter cake materials are granulated or extruded into strips, such as catalysts, organic pigments, inorganic pigments, etc.

Technical specifications

Table 1 Basic parameters of DDW three-layer dryer

Model	Unit	DDW3-1.2-8	DDW3-1.2-10	DDW3-1.6-8	DDW3-1.6-10	DDW3-2-8	DDW3-2-10
Bandwidth	m	1.2		1.6		2
Dry section length	m	8	10	8	10	8	10
Paving thickness	mm	10～50
Usage temperature	℃	50～120
Vapor pressure	mPa	0.2～0.5
Water evaporation	kg/h	80～220	100～320	90～300	120～380	130～400	180～500
Steam consumption		≤2kg steam/1kg evaporated water (for vegetables and Chinese herbal pieces)
Gross power	KW	21.2	21.2	21.2	22.7	22.7	22.7
Outline dimension（l×b×h）	m	11×1.6×2	12.5×1.6×2	11×2.0×2	12.5×2.0×2	11×2.4×2	12.5×2.4×2
Height	kg	3000	4000	4400	4550	4300	6000
Note: Take Astragalus membranaceus as an example.

Table 2 Basic parameters of DDW five-layer dryer

Model	Unit	DDW-5-1.2-8	DDW-5-1.2-10	DDW-5-1.6-8	DDW-5-1.6-10	DDW-5-2-8	DDW-5-2-10
Bandwidth	m	1.2		1.6		2
Dry section length	m	8	10	8	10	8	10
Paving thickness	mm	10～50
Usage temperature	℃	50～120
Vapor pressure	mPa	0.2～0.5
Water evaporation	kg/h	100～250	120～350	110～320	140～400	150～450	200～550
Steam consumption		≤2kg steam/1kg evaporated water (for vegetables and Chinese herbal pieces)
Gross power	KW	21.2	21.2	21.2	22.7	22.7	22.7
Outline dimension（l×b×h）	m	11×1.6×2.7	12.5×1.6×2.7	11×2.0×2.7	12.5×2.0×2.7	11×2.4×2.7	12.5×2.4×2.7
Height	kg	3800	4780	4400	5550	5350	6800
Note: Take Astragalus membranaceus as an example.

Table 3 Basic parameters of DDW seven-layer dryer

Model	Unit	DDW7-1.2-8	DDW7-1.2-10	DDW7-1.6-8	DDW7-1.6-10	DDW7-2-8	DDW7-2-10
Bandwidth	m	1.2		1.6		2
Dry section length	m	8	10	8	10	8	10
Paving thickness	mm	10～50
Usage temperature	℃	50～120
Vapor pressure	mPa	0.2～0.5
Water evaporation	kg/h	120～300	160～400	150～375	190～475	200～500	240～600
Steam consumption		≤2kg steam/1kg evaporated water (for vegetables and Chinese herbal pieces)
Gross power	KW	27	27	40.5	40.5	40.5	49
Outline dimension（l×b×h）	m	11×1.6×3.5	12.5×1.6×3.5	11×2.0×3.5	12.5×2.0×3.5	11×2.4×3.5	12.5×2.4×3.5
Height	kg	4800	5780	5400	6550	6350	7800
Note: Take Astragalus membranaceus as an example.
