Product Introduction:

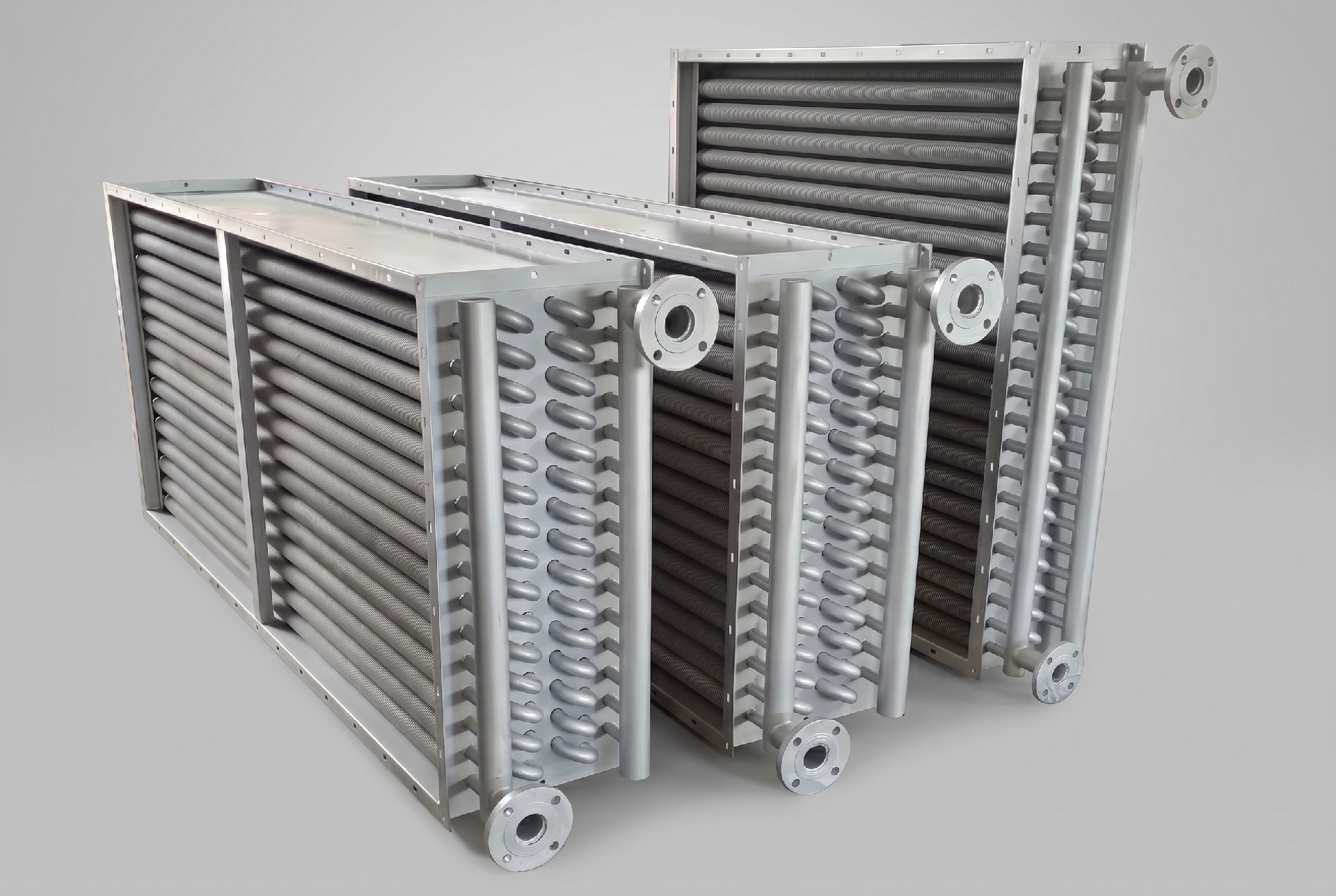

Working Principle Spiral fin radiator is mainly used for air heating in drying system, and it is the main equipment in hot air device. The heat medium used in radiator can be steam or hot water, or heat transfer oil. The working pressure of steam is generally less than 0.8MPa, and the temperature of hot air is below 150℃.

Return to List Contact us

Hotline：

15861136007

Product Details

Principle of operation

The spiral fin radiator is mainly used to heat the air in the drying system, and it is the main equipment in the hot air device. The heat medium used in the radiator can be steam or hot water, or heat transfer oil. The working pressure of steam is generally less than 0.8MPa, and the temperature of hot air is below 150℃.


Technical specifications

Model	Heat exchange tube			Heat interchanging area	Outline dimension（mm）
Model	Specifications	Length	Quantity	Heat interchanging area	Outline dimension（mm）
SRZ5×5D	Ф18×2	512	32	10	580×580×180
SRZ6×6D	Ф18×2	612	41	15	680×680×180
SRZ7×7D	Ф18×2	712	47	20	780×780×180
SRZ10×5D	Ф18×2	1012	32	20	1080×580×180
SRZ10×6D	Ф18×2	1012	41	25	1080×680×180
SRZ12×6D	Ф18×2	1212	41	31	1280×680×180
SRZ15×6D	Ф18×2	1512	41	38	1580×680×180
SRZ10×7D	Ф18×2	1012	47	28	1080×780×180
SRZ12×7D	Ф18×2	1212	47	36	1280×780×180
SRZ15×7D	Ф18×2	1512	47	42	1580×780×180
SRZ15×10D	Ф18×2	1512	68	62	1580×1080×180
SRZ20×10D	Ф18×2	2012	68	85	2080×1080×180
