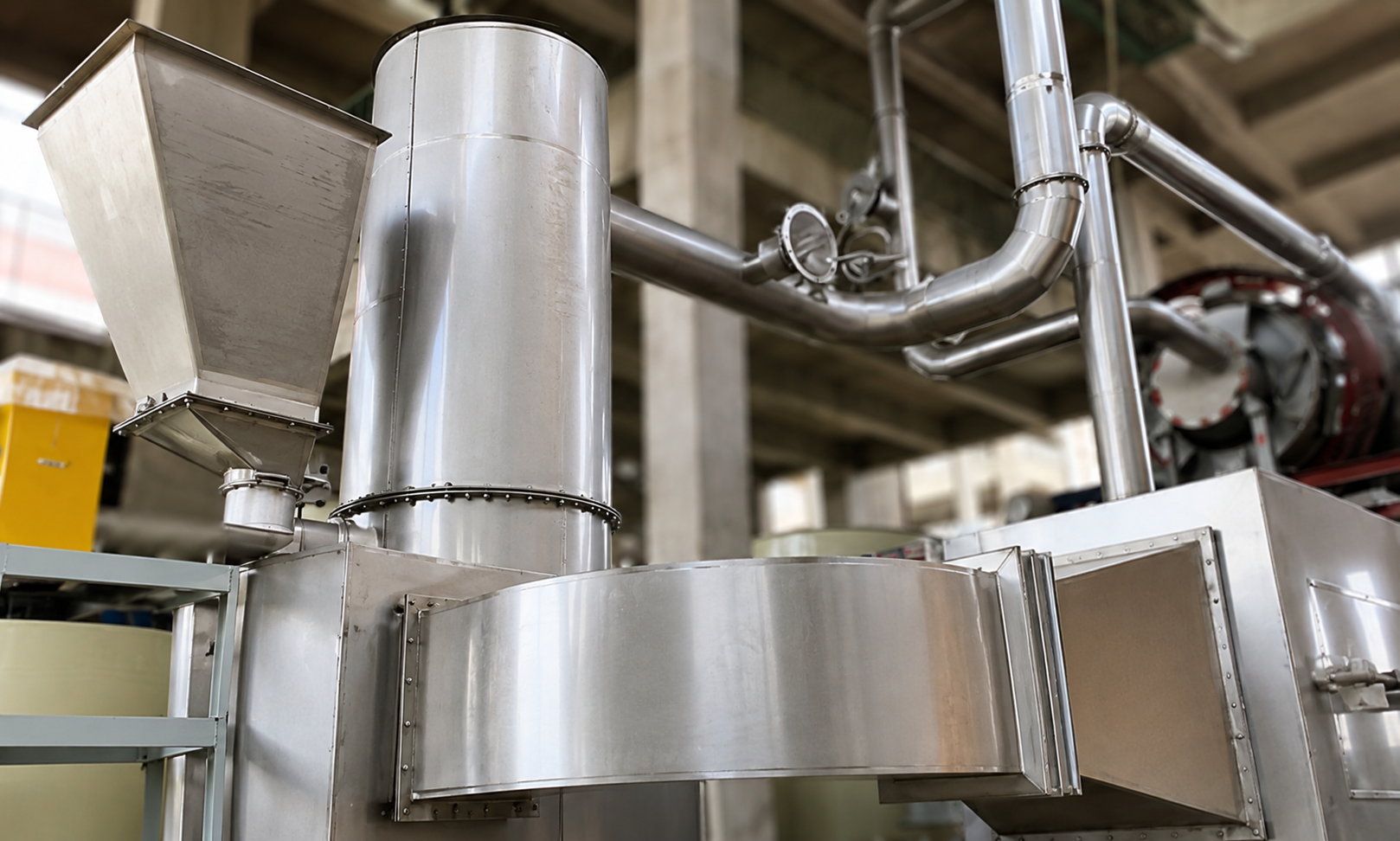

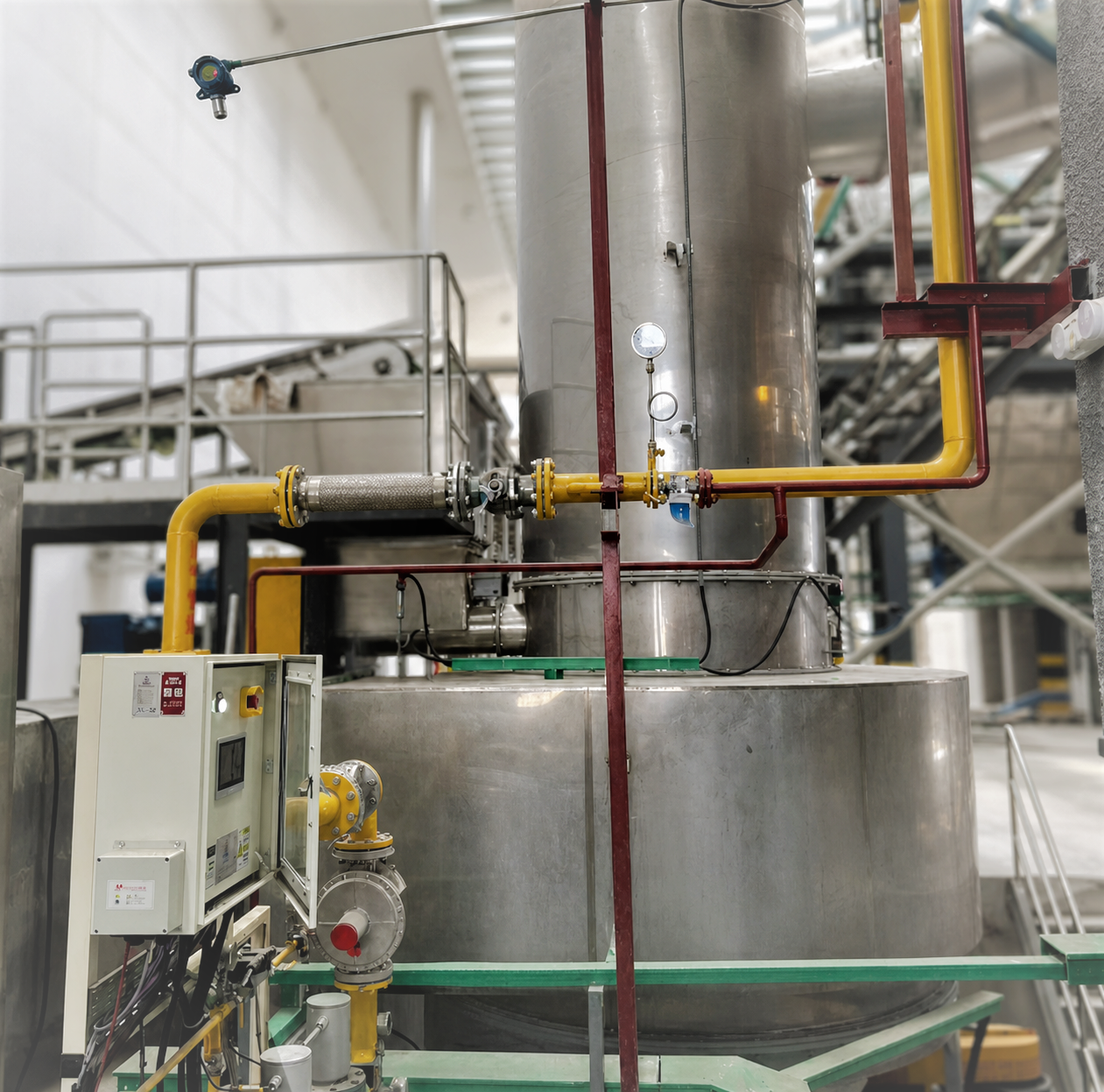

Principle of operation
The drying process of closed-loop flash drying system is similar to that of open flash drying system. Because the materials to be treated contain organic solvents such as methanol, ethanol, toluene, DMF, etc., the system adopts the process of drying tail gas to bring out moisture, then condensing, emptying a small part, and recycling most of it to the air inlet for heating, and then drying.
Performance characteristics
Compared with the open flash drying system, the closed-loop flash drying system has the following remarkable characteristics:
◎ High thermal efficiency.
◎ The solvent can be recovered, which has good economic benefits and conforms to the green circular economy.
◎ The tail gas is condensed and then discharged, so the environmental protection pressure of tail gas treatment is low.
◎ The whole system needs to be explosion-proof.
Applied range
Widely used in the drying of easily oxidized materials, such as mud, paste, block, powder and granular materials containing organic solvents.
