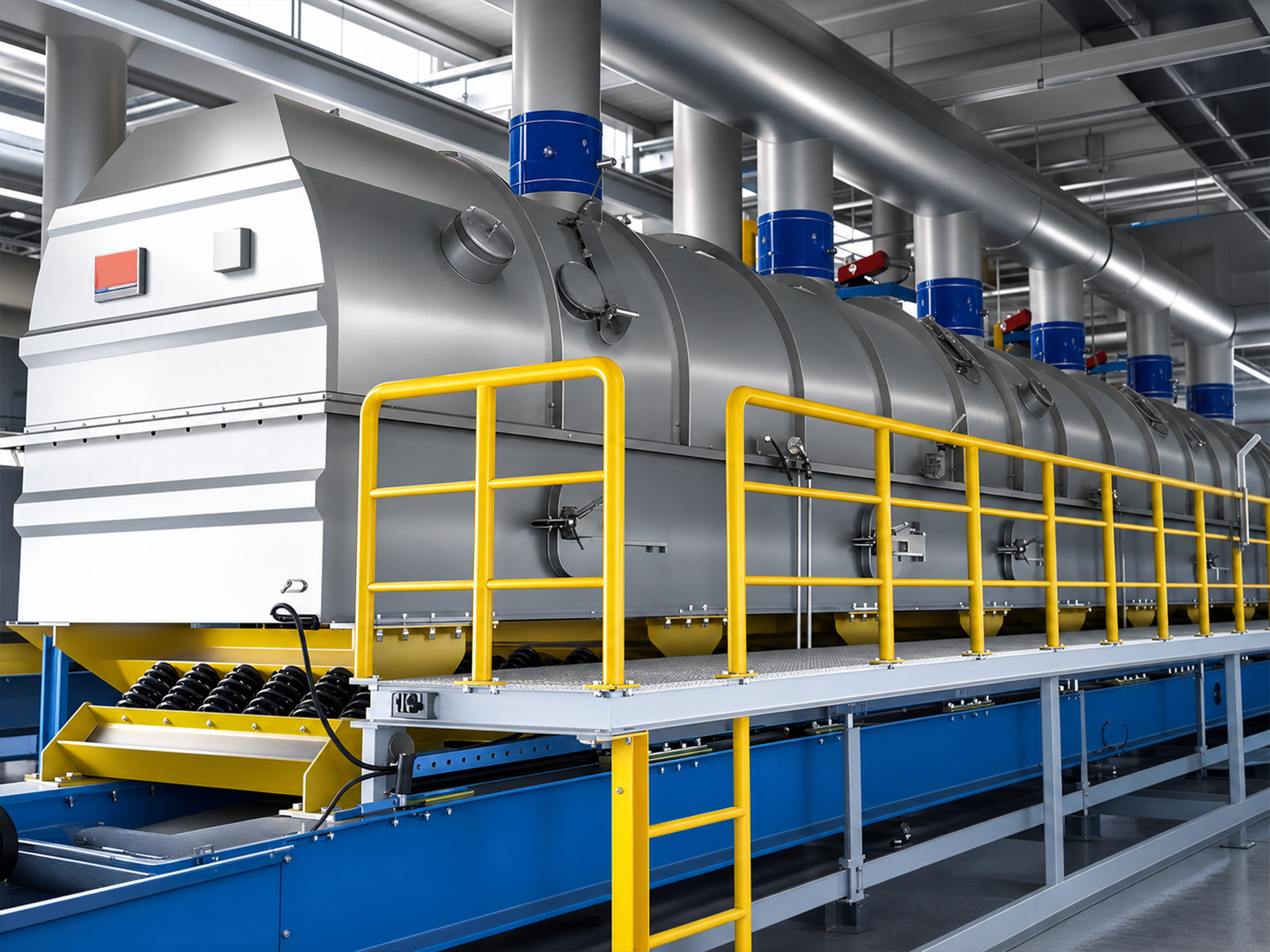

Vibrating fluidized bed dryer

Overview：Working principle: The material enters the machine from the feed inlet. Under the excitation force, the material is thrown along the horizontal fluidized bed and continuously moves forward. After the hot air passes through the fluidized bed to exchange heat with the wet material, the wet air is separated by the cyclone separator, and the bag filter is exhausted by the exhaust air after dust removal. Most of the dry products are discharged from the main machine outlet, and a small amount of powde

Detailed

Horizontal boiling dryer

Overview：Fluidized bed dryer, also known as fluidized bed dryer, is composed of air filter, heater, fluidized bed main unit, cyclone separator, bag dust collector, high-pressure centrifugal fan and operation console. Due to the different properties of dry materials, when supporting dust removal equipment, it can be considered as needed, and cyclone separator and bag dust collector can be selected at the same time, or one of them can be selected. Generally speaking, cyclone separator is only needed for dr

Detailed

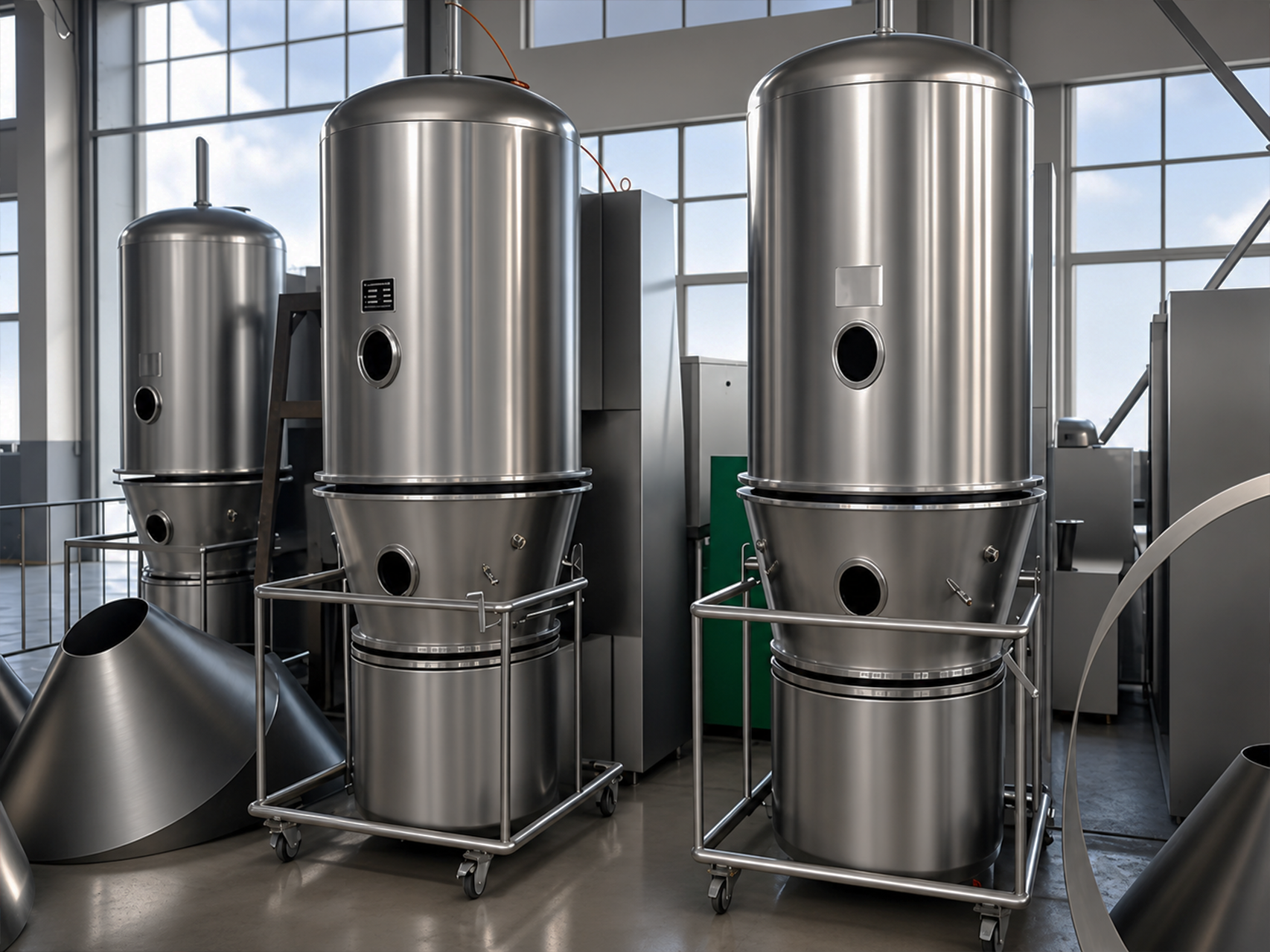

Vertical boiling dryer

Overview：Working principle: After being heated and purified, the air is introduced from the lower part by the induced draft fan and passes through the perforated screen of the hopper. In the working room, fluidization is formed by stirring and negative pressure, and the water is quickly evaporated and taken away with the exhaust gas, and the material is quickly dried. Performance characteristics: the fluidized bed is circular structure to avoid dead ends. The hopper is set with stirring to avoid wet mate

Detailed

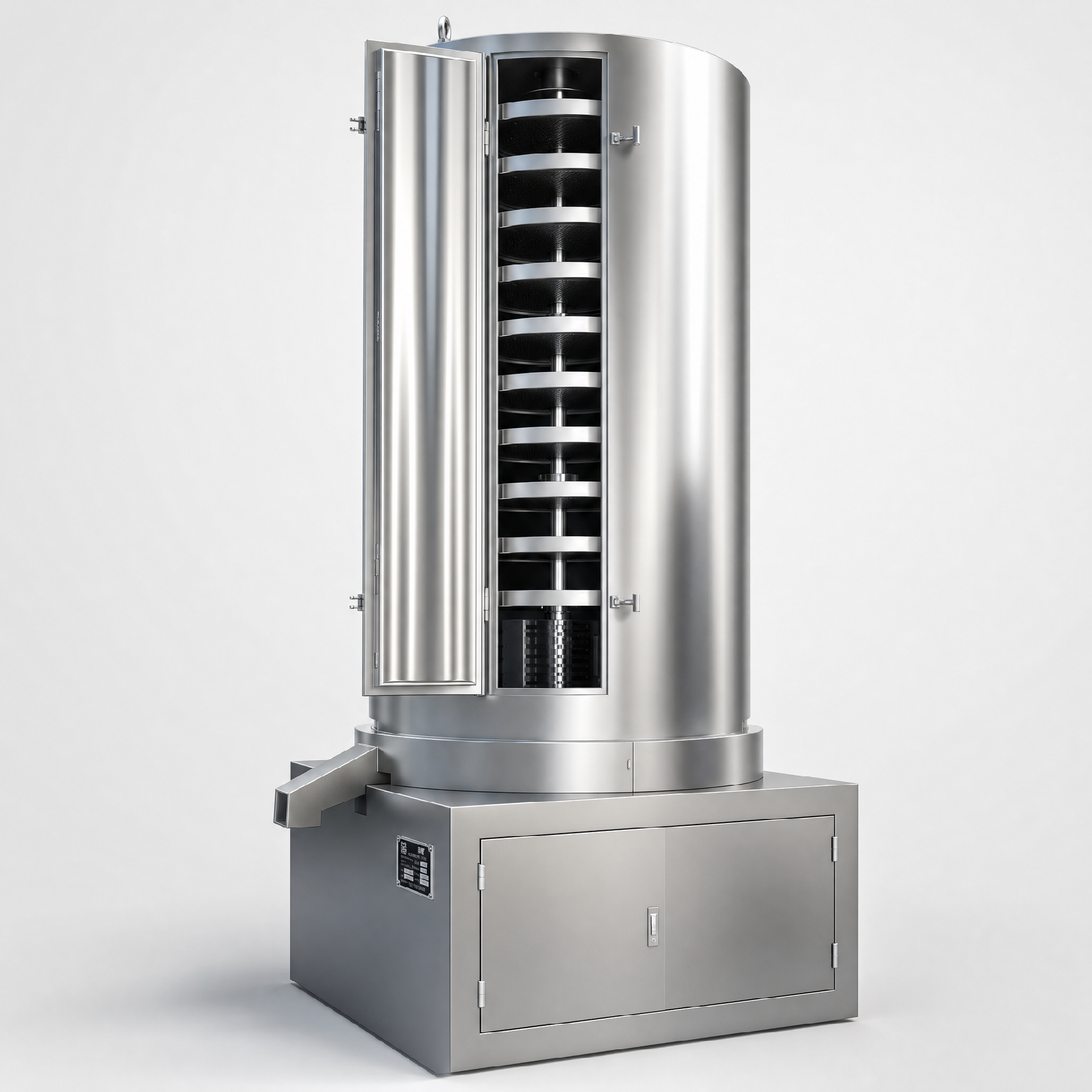

Spiral vibration dryer

Overview：Wet material enters the spiral bed from the top feeding port, and under the action of circumferential exciting force and gravity, the material jumps from top to bottom along the spiral bed until the lowest layer is discharged; At the same time, clean hot air enters from the bottom of the spiral bed, and after fully heat and mass transfer with the materials distributed on the bed, it is discharged from the top moisture outlet. So that the wet material can be dried.

Detailed
