Home/Products/Lithium battery material industry

Product Center

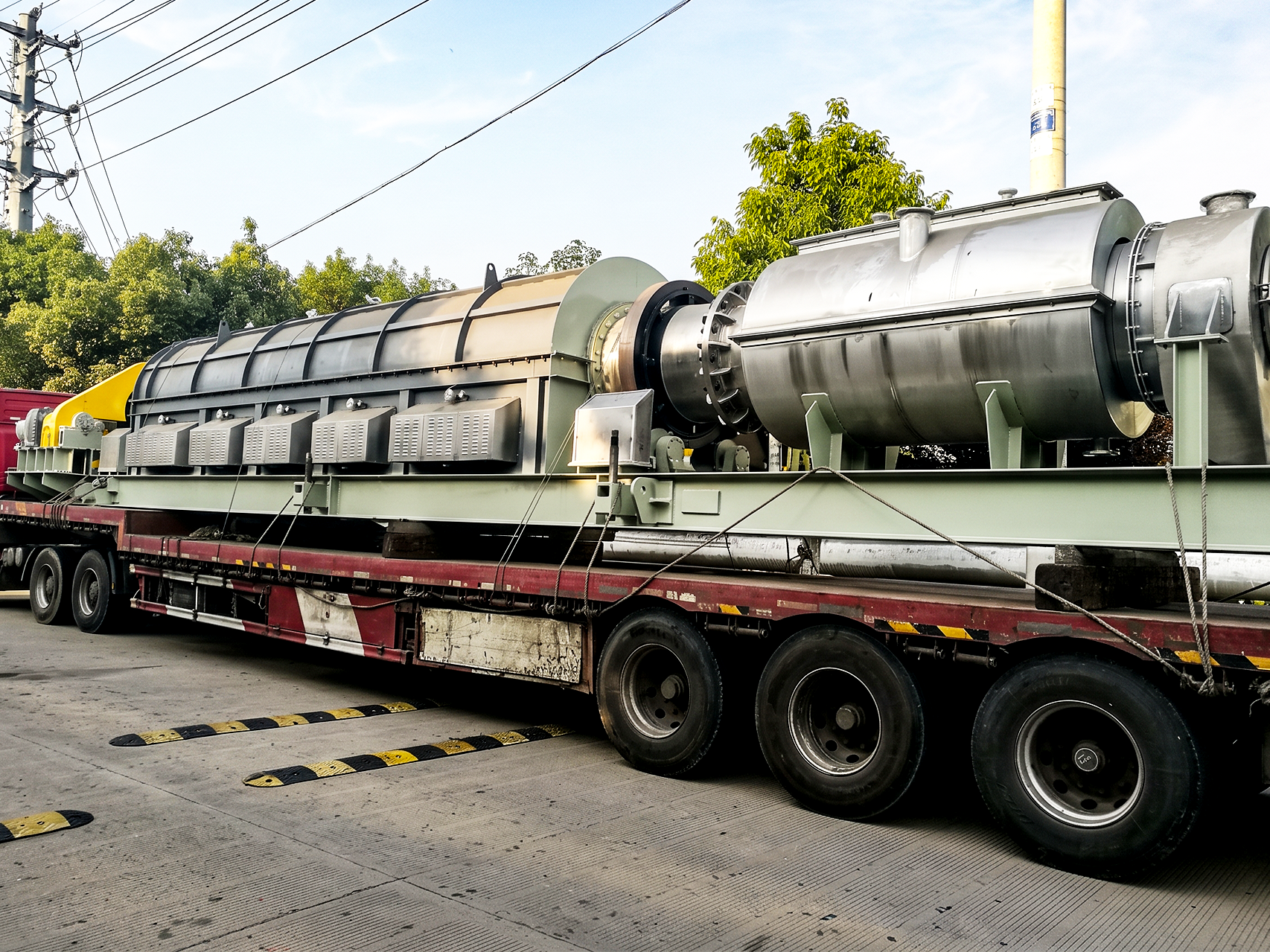

Rotary flash drying of iron phosphate+rotary roasting kiln production line

Overview：The main components of the system are summarized: rotary flash drying system and rotary roaster system. The rotary flash drying system is mainly composed of heater, feeder, dryer, dust collector, fan and control system. Due to the special properties of some special materials, the feeders in the system are specially designed and can be selected according to the material characteristics. The heater is a new structure with higher thermal efficiency and safety.

Detailed

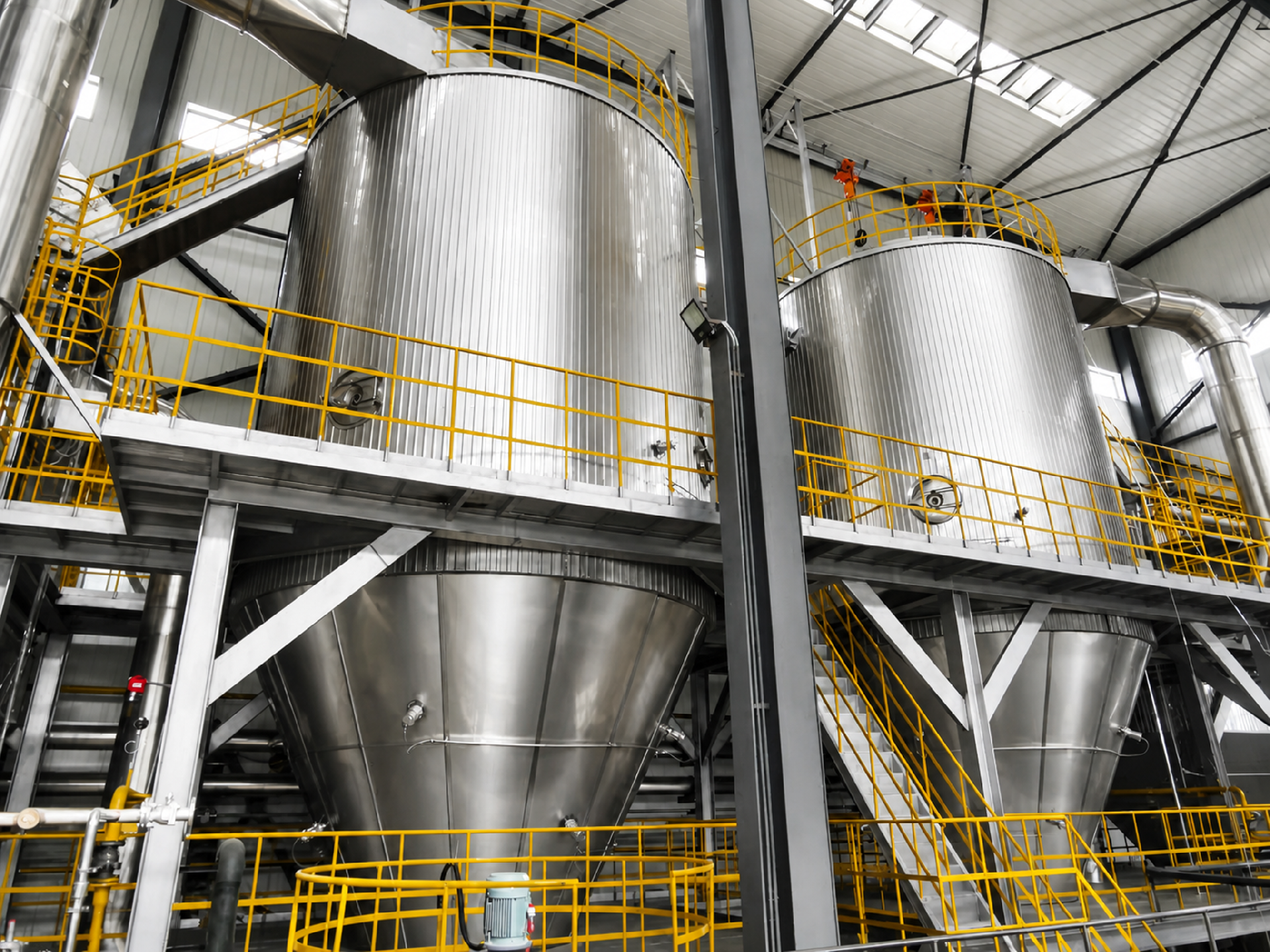

Ferrous lithium phosphate spray drying unit

Overview：The spray drying method is a method of applying systematic technology to material drying. The production equipment of this method is simple, the process is easy to realize, the solution and emulsion can be quickly dried into powder or granular products, evaporation and washing procedures can be omitted, the production efficiency of products can be improved, the cost can be saved, and mass production can be realized. Spray drying method has been widely used in the field of lithium battery materia

Detailed

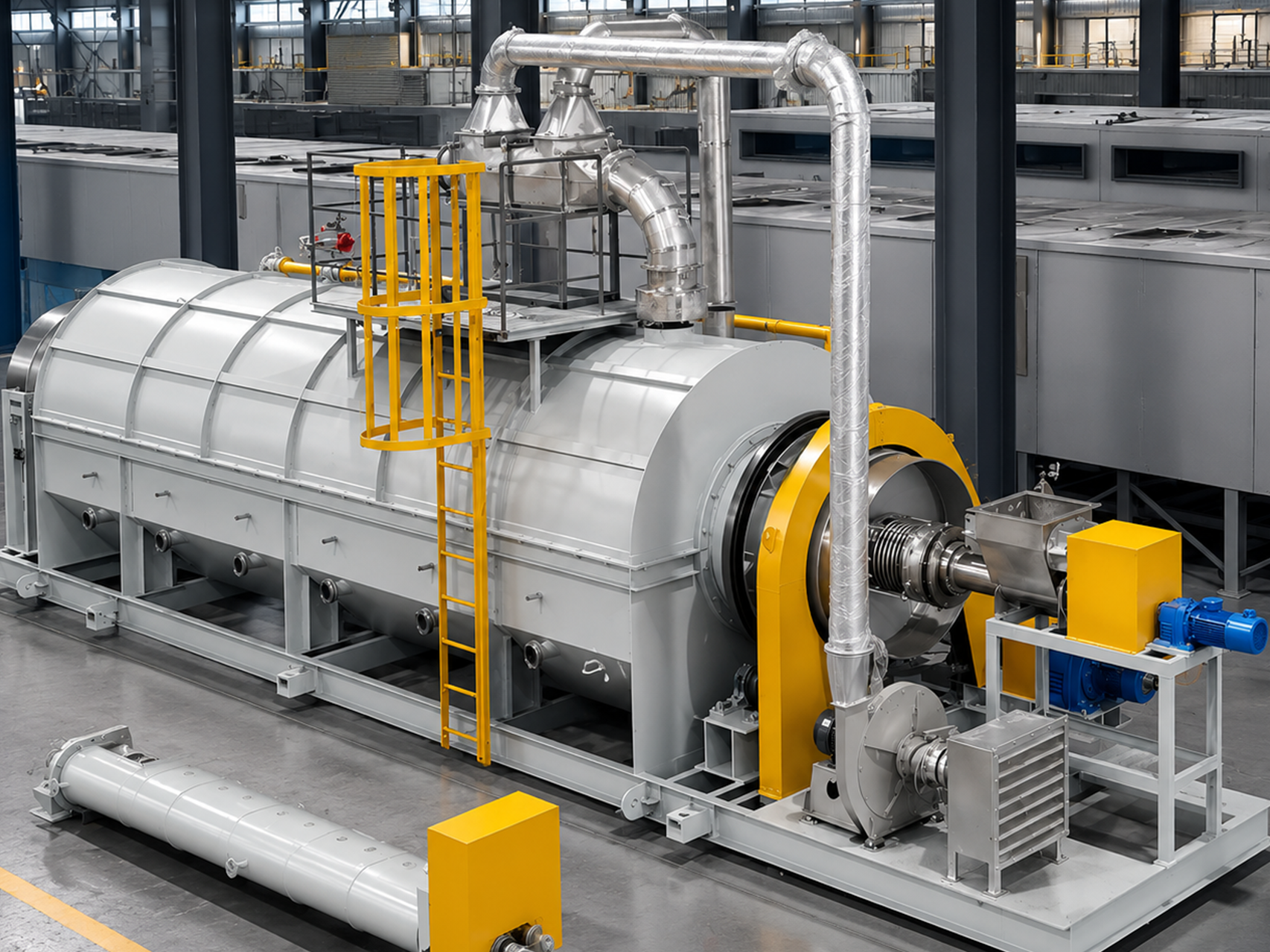

Lithium carbonate drying rotary kiln

Overview：Characteristics Traditional drying of lithium carbonate adopts vertical disc drying. Compared with vertical disc drying equipment, rotary kiln drying has stronger stability and lower failure rate, and both electric heating and natural gas heating can be applied. The electric heating roaster has good sealing effect, high degree of automation, automatic control of roasting temperature and sectional setting ◎ The heating system is safe and reliable, and the surface temperature rise of the heat pres

Detailed

Dehydration solution rotary drying

Overview：Working principle: In battery recovery, low temperature removal is adopted for electrolyte removal. After the crushed battery is put into the dryer from one end, the materials are evenly distributed and dispersed in the dryer under the turning of the plate-copying machine evenly distributed in the inner cylinder, and fully contact with the hot air in parallel flow (countercurrent), which accelerates the drying heat transfer and transmits it to the driving force. In the drying process, under the

Detailed

Battery recovery pyrolysis furnace

Overview：Lithium battery decomposition equipment, pyrolysis recovery equipment, rotary kiln for pyrolysis treatment of waste lithium batteries. The anaerobic cracking temperature is generally between 250-600 degrees (the cracking temperature is higher than 420 degrees as far as possible because the adhesive PTFE pyrolysis temperature is 415 degrees and the cracking temperature is lower than the melting point of aluminum 650 degrees as far as possible), so as to prevent the anode aluminum foil from meltin

Detailed
